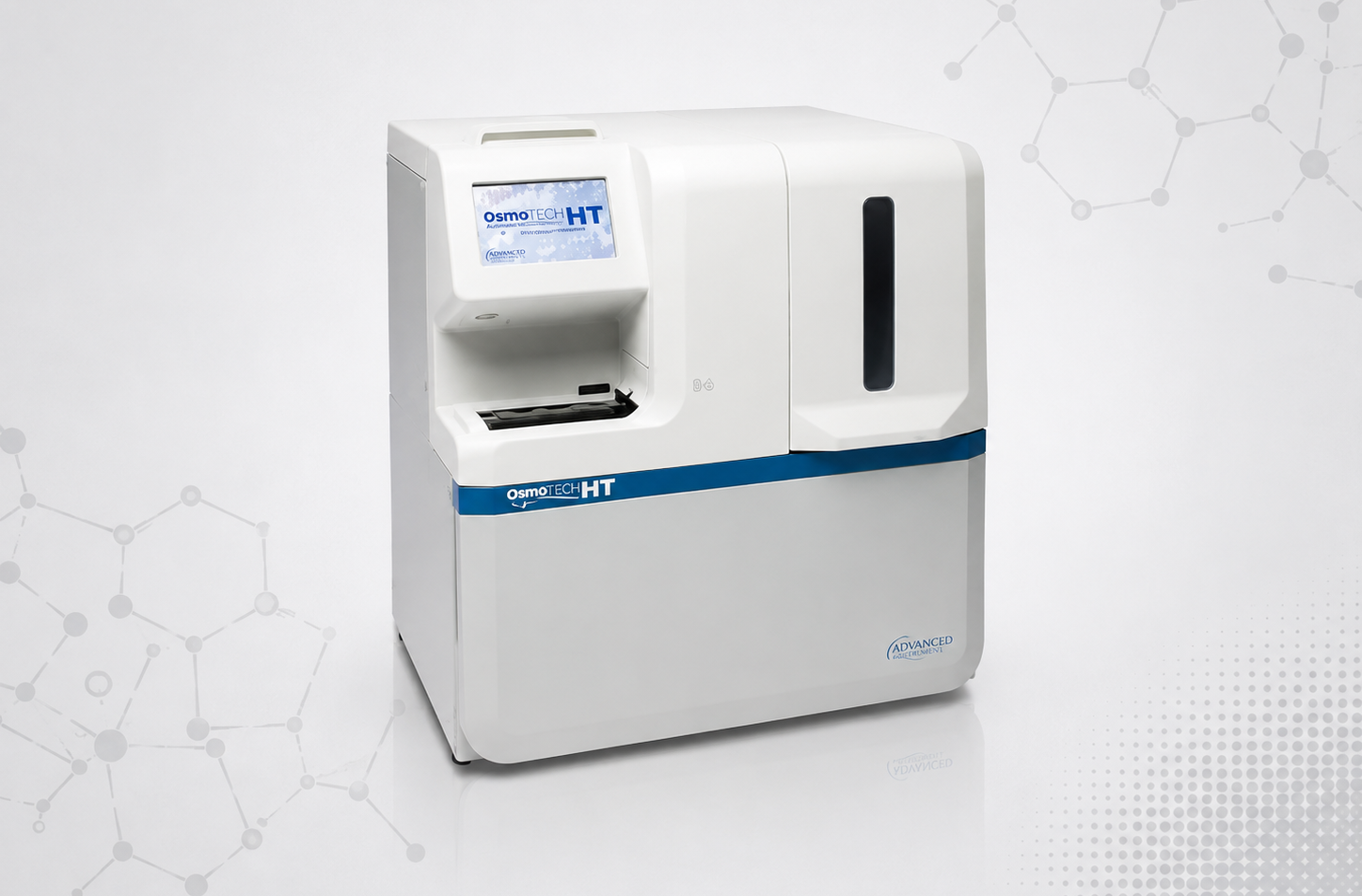

Advanced Instruments OsmoTECH® HT Automated Micro-Osmometer
The Advanced Instruments OsmoTECH® HT Automated Micro-Osmometer is a high-throughput automated osmometer designed for laboratories that require efficient and reliable osmolality testing of large numbers of aqueous samples. Using a 96-well plate format, the system automates sample processing and provides precise osmolality measurements with minimal manual intervention.
The OsmoTECH® HT is designed for high-volume laboratory workflows, supporting multi-plate sample loading, automated sample handling, customizable templates, and streamlined data management. It provides a measurement range of 0–2,000 mOsm/kg H₂O with 1 mOsm/kg H₂O resolution, making it suitable for demanding pharmaceutical, biotechnology, formulation, and research applications.
Product Specifications
| Product Name | OsmoTECH® HT Automated Micro-Osmometer |
|---|---|
| Brand / Manufacturer | Advanced Instruments |
| Instrument Type | Automated Plate-Based Micro-Osmometer |
| Measurement Technology | Freezing Point Osmometry |
| Sample Type | Aqueous-Based Solution |
| Sample Volume per Test | 40 µL |
| Sample Format | 96-Well Plate |
| Sample Capacity | Multi-Plate Loading |
| Test Time | Approximately 140 Seconds per Test |
| Measurement Range | 0–2,000 mOsm/kg H₂O |
| Resolution | 1 mOsm/kg H₂O |
| Accuracy | ±3 mOsm/kg H₂O from 0–400 mOsm/kg H₂O; ±1% from >400–2,000 mOsm/kg H₂O |
| Within-Run Repeatability | ≤3 mOsm/kg H₂O from 0–400 mOsm/kg H₂O; ≤1% CV from >400–2,000 mOsm/kg H₂O |
| Operating Temperature | 18 °C to 35 °C |
| Operating Humidity | 5–80% RH, Non-Condensing |
| Electrical Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | 60 Watts |
| Dimensions (D × W × H) | 48.9 × 62.87 × 68.58 cm |
| Net Weight | 59.7 kg |
| Warranty | One-Year Limited Warranty |
Key Features
- Automated high-throughput osmolality testing using a 96-well plate format
- Wide measurement range from 0 to 2,000 mOsm/kg H₂O
- High measurement resolution of 1 mOsm/kg H₂O
- Small sample requirement of approximately 40 µL per test
- Multi-plate sample capacity for high-volume laboratory workflows
- Customizable templates help simplify repetitive testing workflows
- Touchscreen interface with guided menus for intuitive operation
- Designed for demanding pharmaceutical and biotechnology laboratory applications
- Supports features required for 21 CFR Part 11 and EU Annex 11 compliance
Applications
The OsmoTECH® HT Automated Micro-Osmometer is designed for high-throughput osmolality testing in pharmaceutical, biotechnology, bioprocessing, formulation development, research, and quality-control laboratories. Its automated 96-well workflow is particularly suitable for laboratories processing large numbers of samples and performing repetitive osmolality measurements.
Working Principle
The OsmoTECH® HT determines solution osmolality using freezing point osmometry. The instrument measures the change in freezing point of an aqueous sample and converts this measurement into osmolality. Automated sample handling and high-throughput 96-well plate processing allow multiple samples to be analyzed efficiently with consistent measurement performance and minimal manual intervention.
