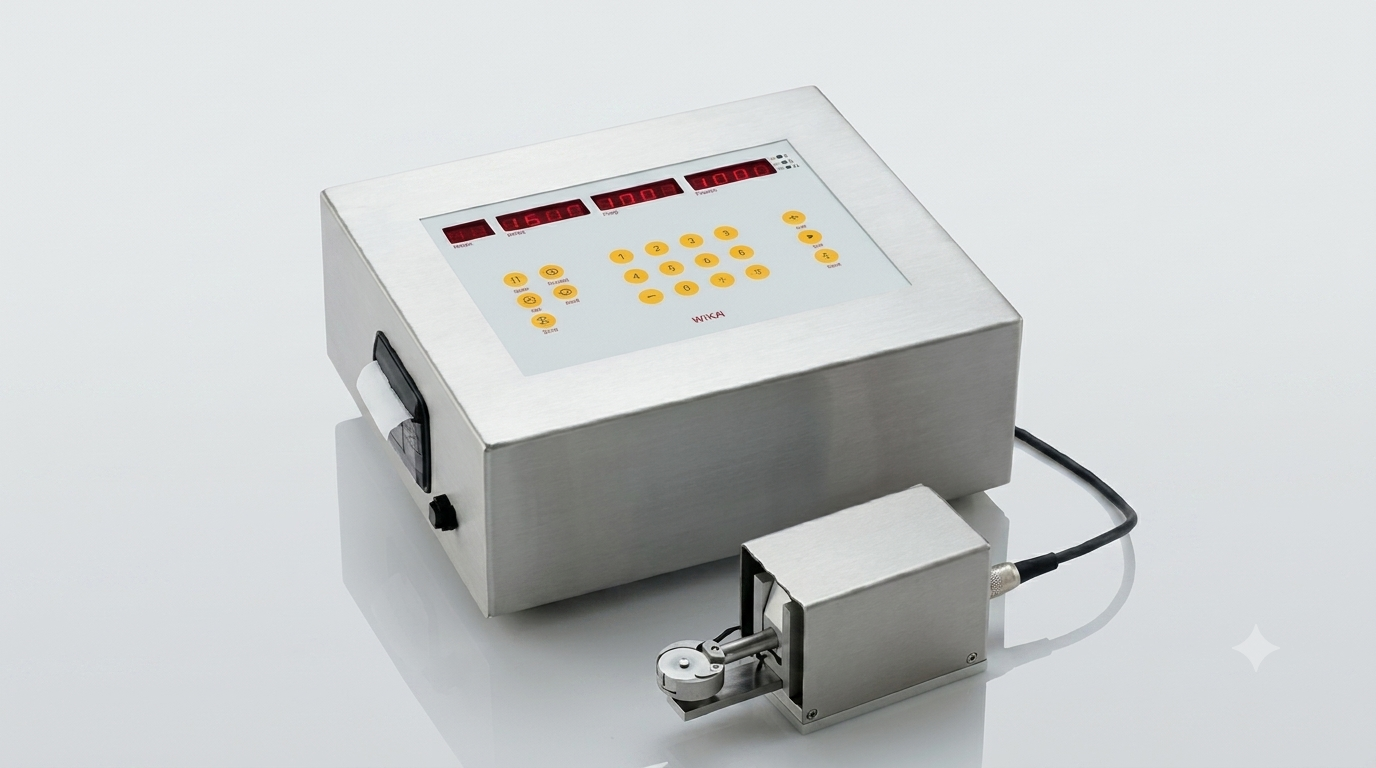

PTB 330 5 in 1 Tablet Testing Instrument
The PTB 330 is an advanced 5 in 1 tablet testing instrument designed for accurate measurement of tablet hardness, diameter, thickness, width, and weight. It offers dual test modes with reliable performance and complies with USP and EP Pharmacopoeia standards for pharmaceutical quality control laboratories.
This dual test mode instrument provides complete analysis of a single tablet sample. Equipped with a unique fingerprint sensor, secure user login, statistical evaluation, networking capability, and graphical user interface, the PTB 330 ensures efficient and precise tablet testing for pharmaceutical applications.
Product Specifications
| Product Name | PTB 330 5 in 1 Tablet Testing Instrument |
|---|---|
| Testing Parameters | Hardness, Diameter (Length), Thickness, Width and Weight |
| Capacity |
PTB 330: 2.0 - 300.0 N PTB 330-500: 5.0 - 500.0 N PTB 330-1000: 10.0 - 1,000.0 N |
| Instrument Type | Dual Test Mode Tablet Testing Instrument |
| Compliance | USP and EP Pharmacopoeia Standards |
| Fingerprint Sensor | Secure and Immediate User Login |
| Statistical Calculation | Mean Value, Absolute & Relative Standard Deviation, Minimum and Maximum Result |
| Networking Capability | Optional |
| Diameter | Approx. 260 x 500 x 260 mm (Length x Width x Height) |
| Packaging Details | Packaging Dimensions Approx. 310 x 660 x 420 mm (Length x Width x Height) |
Key Features
- 5 in 1 tablet testing for hardness, thickness, width, diameter and weight
- Full compliance with USP and EP Pharmacopoeia standards
- Dual force mode with linear speed and force increase modes
- Fingerprint sensor for secure and fast user authentication
- Advanced statistical analysis and result calculation
- Programmable print-out of force increase curve
- Suitable for tension strength testing of oblongs and caplets
Applications
The PTB 330 Tablet Testing Instrument is widely used in pharmaceutical research, formulation development, production quality control, and testing laboratories for accurate evaluation of tablet mechanical properties and quality compliance.
Working Principle
The PTB 330 measures multiple physical parameters of tablets by applying controlled force and measuring tablet resistance, dimensions, and weight. The instrument provides accurate and repeatable results through advanced force measurement technology and integrated statistical analysis.
