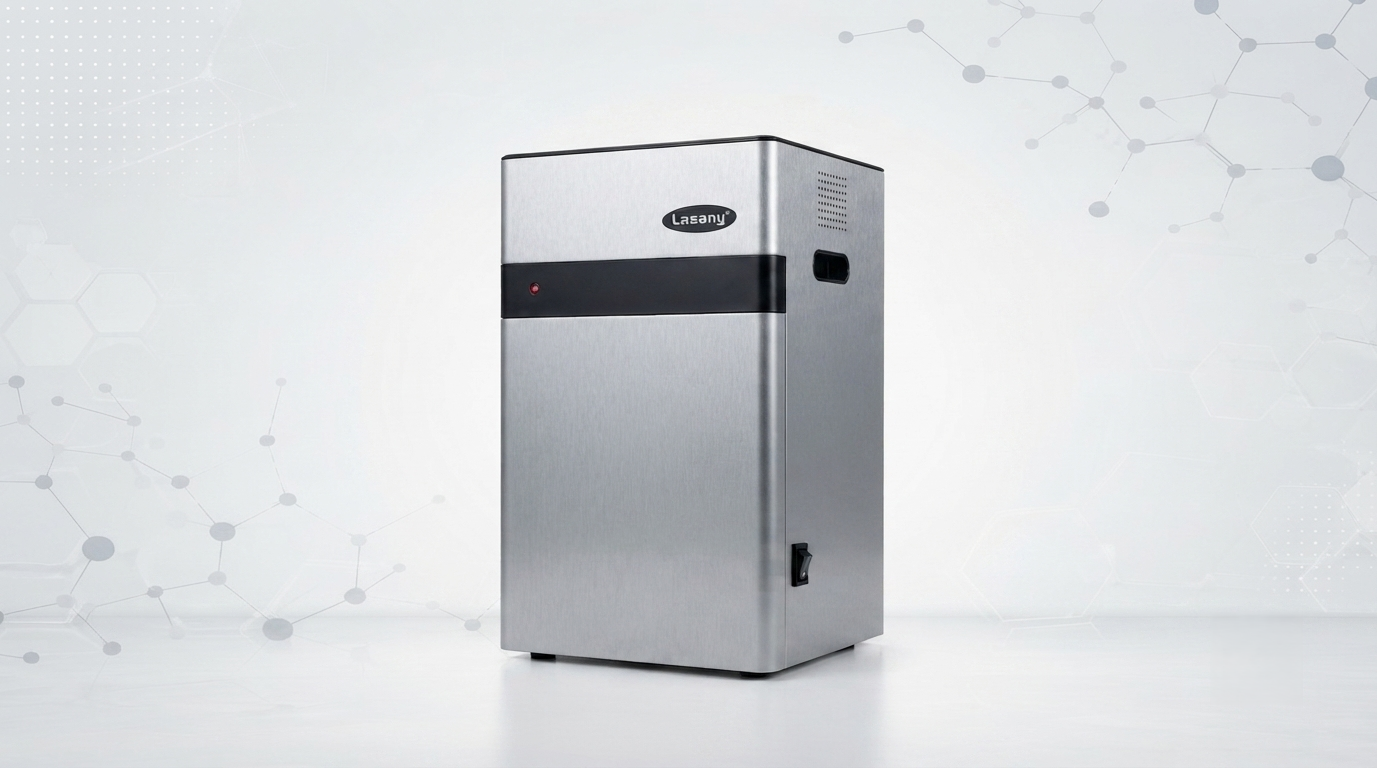

Lasany LI-GD950 Gel Documentation and Analysis System
The Lasany LI-GD950 Gel Documentation and Analysis System is a high-resolution imaging platform designed for capturing, analyzing, and documenting DNA, RNA, and protein gels. It is widely used in molecular biology, biotechnology, pharmaceutical research, and academic laboratories for accurate gel imaging and quantitative analysis.
Equipped with a scientific 5-megapixel CCD camera, advanced optics, UV transillumination, and powerful analysis software, the LI-GD950 provides precise visualization and documentation of fluorescent and stained gel samples. Its automated imaging capabilities and safety features ensure reliable performance for routine laboratory research and quality analysis.
Product Specifications
| Product Name | Gel Documentation and Analysis System |
|---|---|
| Brand | Lasany International |
| Model | LI-GD950 |
| Imaging Type | Fluorescence |
| Camera Resolution | 5 Megapixels (2592 × 1944) |
| Detection Range | UV 302 nm |
| Transilluminator Size | 21 × 26 cm |
| Excitation Source | Blue LED and White LED |
| Camera Type | Scientific CCD Camera |
| Optics | Motorized Lens with Focus and Aperture Control |
| Filter | 590 nm Standard Filter |
| Software | Basic Analysis and Advanced Analysis Software |
| Data Interface | USB |
| Packaging | Wooden Box |
Key Features
- High-resolution 5 MP scientific CCD camera for accurate gel imaging
- Supports fluorescence imaging with UV, blue LED, and white LED illumination
- Motorized optical system with automatic focus and aperture control
- Advanced software for gel documentation and quantitative analysis
- Built-in UV protection shield for safe laboratory operation
- USB interface for easy data transfer and documentation
Applications
The Lasany LI-GD950 Gel Documentation and Analysis System is used in molecular biology, genetics, biotechnology, pharmaceutical research, clinical laboratories, and academic institutions. It is suitable for DNA, RNA, and protein gel imaging, electrophoresis analysis, PCR product documentation, and laboratory research applications.
Working Principle
The gel documentation system captures images of separated biological samples after electrophoresis using UV or LED-based illumination. The fluorescent or stained bands emit signals that are detected by the high-resolution CCD camera. The captured images are processed using analysis software to measure band intensity, size, and concentration for accurate biological analysis.
