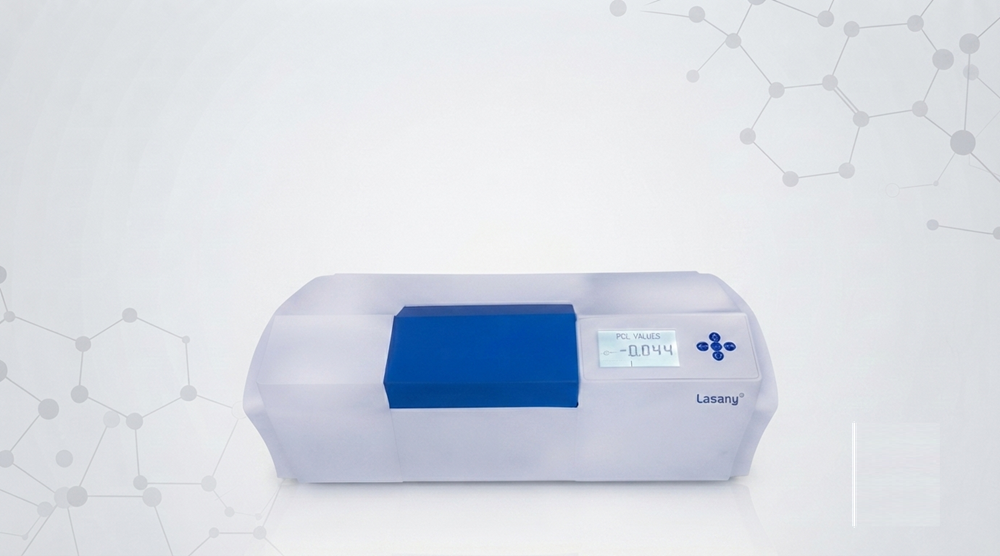

Lasany LI-P701 Digital Automatic Polarimeter
The Lasany LI-P701 Digital Automatic Polarimeter is a high-precision laboratory instrument designed for measuring the specific optical rotation and sugar degree of optically active substances. It is widely used in pharmaceutical, food, chemical, sugar, and research laboratories for quality control and analytical testing.
The LI-P701 features an automated servo-controlled measurement system capable of testing both transparent and dark-colored samples. With an easy-to-read LCD display, automatic data processing, result storage, and RS-232 connectivity, it provides reliable, accurate, and efficient polarimetric analysis for routine laboratory applications.
Product Specifications
| Product Name | Digital Automatic Polarimeter |
|---|---|
| Model | LI-P701 |
| Brand | Lasany |
| Type | Digital |
| Measurement Range | -45° to +45° |
| Accuracy | ±0.05° |
| Wavelength | 589 nm |
| Display Type | LCD |
| Temperature Control | No Control |
| Connectivity | RS-232 Interface |
| Test Tube Support | 100 mm and 200 mm |
| Minimum Sample Transmittance | > 1% |
| Packaging Details | Wooden Box |
Key Features
- Fully automatic digital polarimeter with servo-controlled measurement
- Measures specific optical rotation and sugar degree accurately
- Capable of testing dark-colored and transparent samples
- Automatic averaging, result storage, and LCD display
- RS-232 interface for computer and printer connectivity
- Supports 100 mm and 200 mm standard polarimeter tubes
Applications
The Lasany LI-P701 Digital Automatic Polarimeter is widely used in pharmaceutical laboratories, sugar industries, food processing plants, chemical laboratories, academic research institutes, and quality control laboratories for measuring optical rotation, sugar concentration, and purity of optically active compounds.
Working Principle
The polarimeter measures the angle through which plane-polarized light is rotated when it passes through an optically active sample. The measured optical rotation is directly related to the concentration and purity of the substance, making it an essential instrument for quality control and analytical testing.
