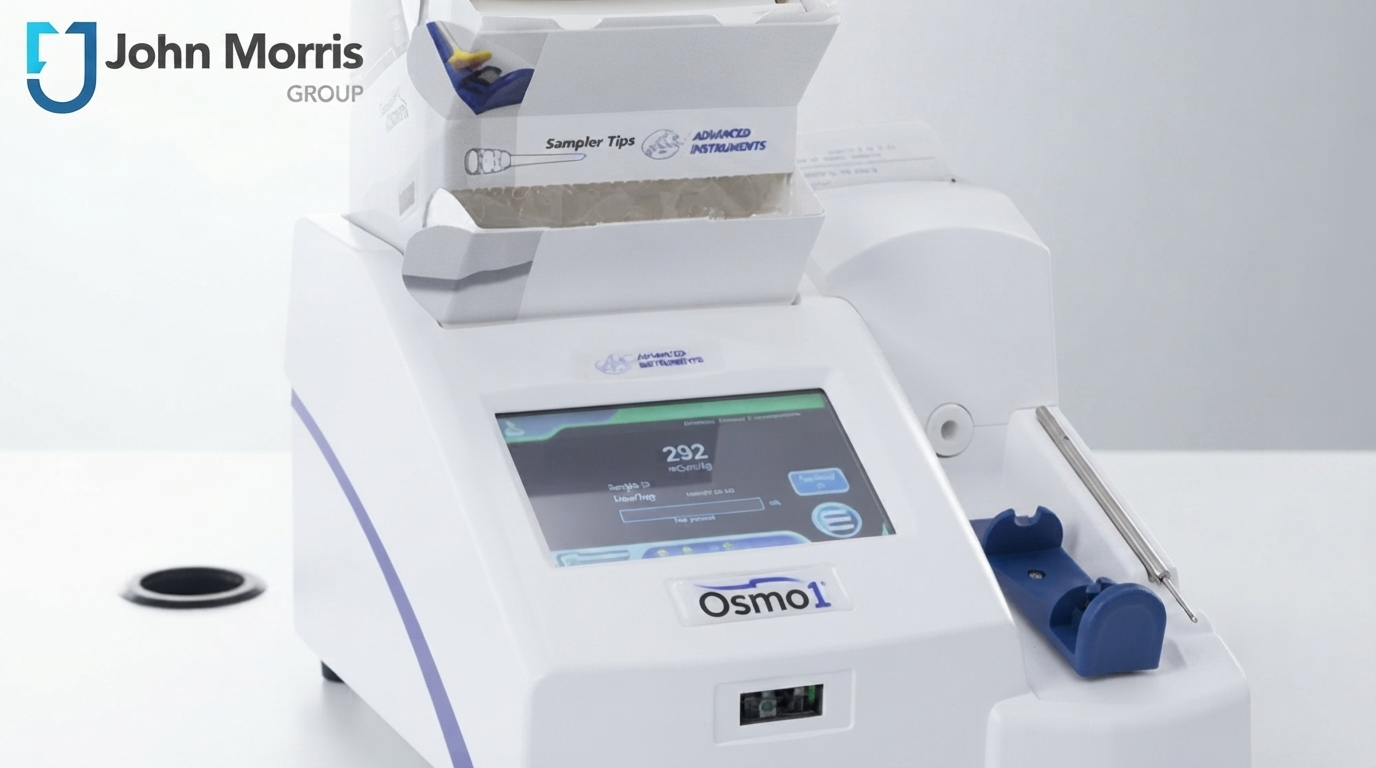

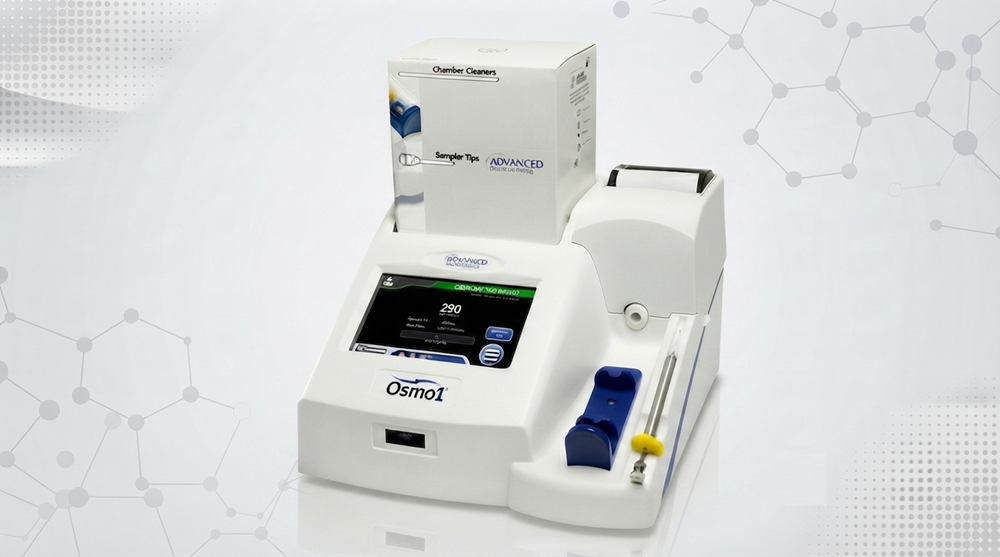

Advanced Instruments USA Osmo1 Single Sample Micro-Osmometer
The Advanced Instruments USA Osmo1 Single Sample Micro-Osmometer is a high-precision freezing point osmometer designed for accurate measurement of osmolality in clinical, pharmaceutical, and industrial samples. It provides reliable, fast, and precise results with minimal sample volume, making it ideal for modern diagnostic laboratories, research facilities, and quality control applications.
The Osmo1 features a simple one-step direct sampling process, automatic calibration management, and advanced electronic data handling capabilities. With a fast 90-second test cycle, only 20 µL sample requirement, and an intuitive color-coded user interface, it ensures efficient workflow and dependable osmolality testing for a wide range of applications.
Product Specifications
| Product Name | Single Sample Micro-Osmometer |
|---|---|
| Brand | Advanced Instruments USA |
| Model | Osmo1 |
| Osmometer Type | Freezing Point |
| Sample Type | Industrial Fluid, Plasma, Urine, Serum |
| Sample Capacity | Single Sample |
| Measurement Range | 0 – 4000 mOsm/kg |
| Resolution | 1 mOsm/kg |
| Sample Volume | 20 µL |
| Test Time | Approximately 90 Seconds |
| Connectivity | Ethernet and USB Ports |
| Printer | Built-in Printer |
| Packaging | Wooden Box |
Key Features
- Advanced freezing point technology for accurate osmolality measurement
- Single-sample operation with simple direct sample loading
- Requires only 20 µL sample volume for testing
- Fast 90-second measurement cycle for improved laboratory efficiency
- Ethernet and USB connectivity for LIS integration and data export
- Built-in printer for easy reporting and result archiving
Applications
The Advanced Instruments Osmo1 Single Sample Micro-Osmometer is widely used in clinical laboratories, hospitals, pharmaceutical industries, research institutes, and industrial laboratories for measuring osmolality of plasma, serum, urine, biological fluids, and industrial samples. It supports clinical diagnosis, drug therapy monitoring, quality control, and laboratory research applications.
Working Principle
The Osmo1 operates using the freezing point depression method, which measures the decrease in freezing temperature caused by dissolved solutes in a sample. Since freezing point depression depends directly on the total concentration of dissolved particles, the instrument accurately determines osmolality regardless of particle size, shape, or chemical properties. This method is considered the gold standard for clinical osmolality measurement.
