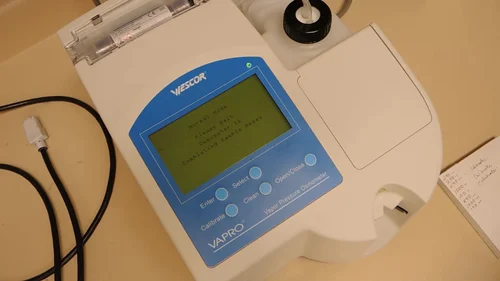

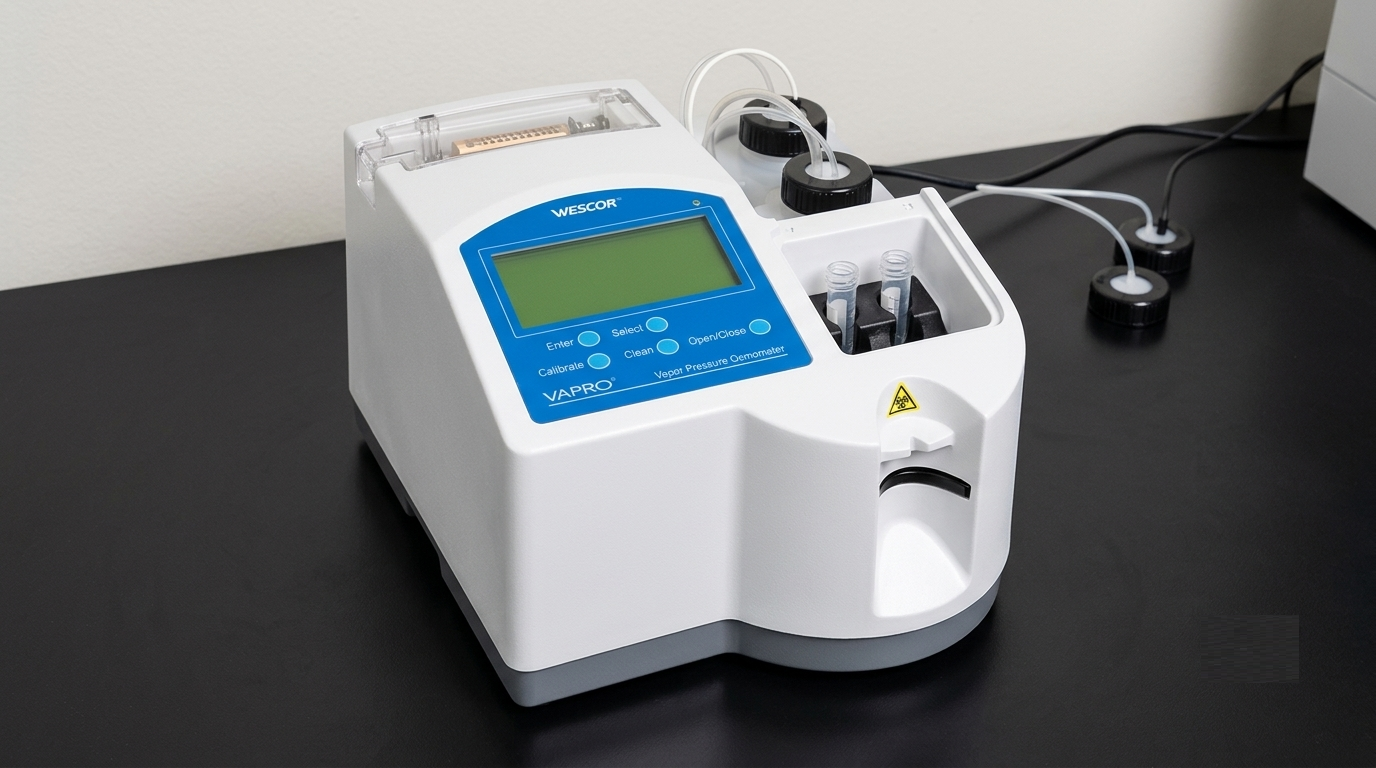

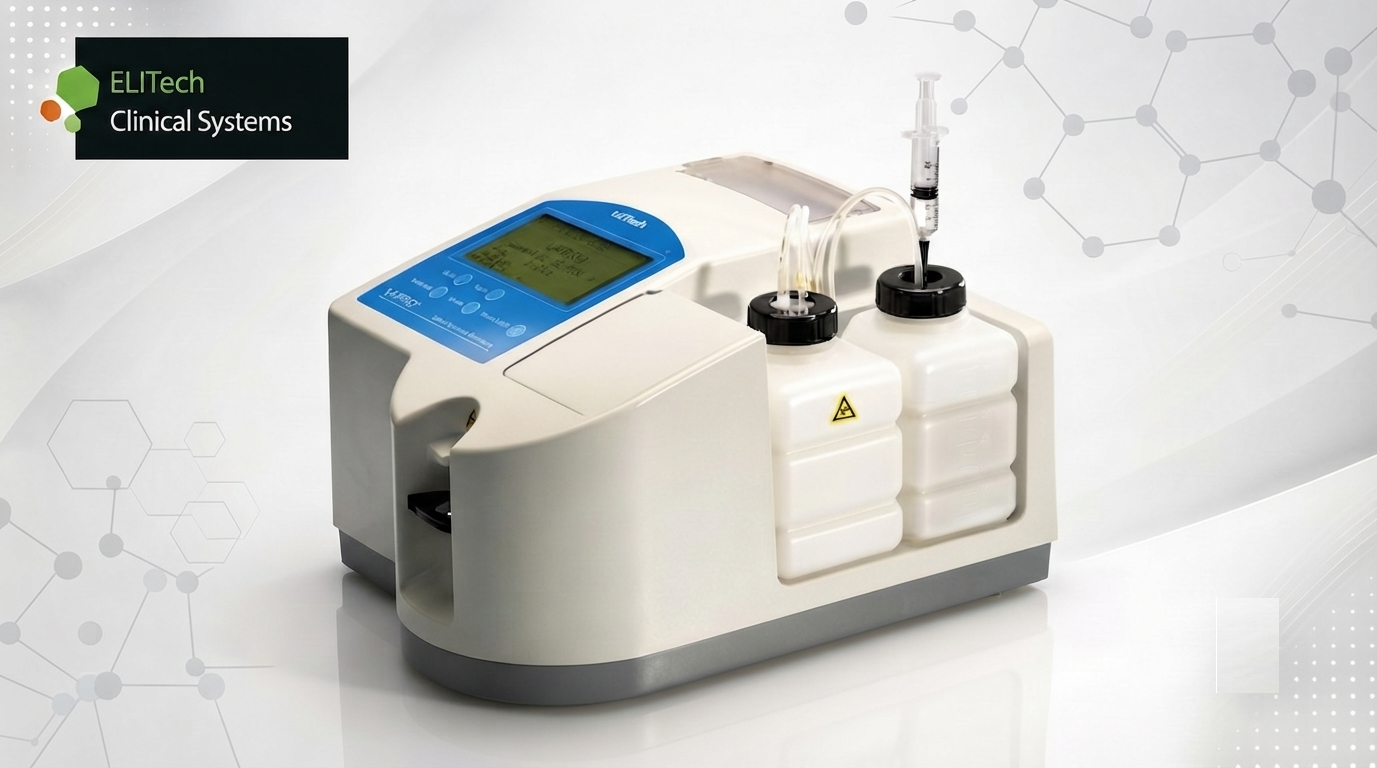

ELITech USA Vapro 5600 Vapor Pressure Osmometer
The ELITech USA Vapro 5600 Vapor Pressure Osmometer is an advanced laboratory instrument designed for accurate osmolality measurement using proven vapor pressure technology. It provides exceptional simplicity, convenience, and accuracy for research and clinical laboratory applications.
Vapro 5600 is a leading research osmometer capable of analyzing various sample types including fluids, viscous samples, and tissue samples. With features such as automatic calibration, self-cleaning thermocouple, self-diagnostics, statistical analysis, and computer interface capabilities, it delivers reliable performance for demanding laboratory environments.
Product Specifications
| Osmometer Type | Vapor Pressure Osmometer |
|---|---|
| Sample Capacity | Single Sample |
| Model Name / Number | Vapro 5600 |
| Brand | ELITech, USA |
| Usage/Application | Laboratory |
| Measurement Range | 20 to 3200 mmol/kg |
| Resolution | 1 mmol/kg |
| Measuring Rate | 20 to 3200 mmol/kg |
| Measurement Time | 90 Seconds |
| Minimum Sample Volume | 10 µL |
| Repeatability | 2 mmol/kg Standard Deviation |
| Calibration | Automatic using Opti-Mol Osmolality Standards |
| Display | 240 x 128 Pixel Backlit LCD |
| Interface | RS-232 (ASCII Format) / USB Type-B |
| Operating Temperature | Indoor use between stable 15-37°C |
| Power Supply | 100 - 240 Volts AC @ 50-60 Hz Transient |
| Power Consumption | 40 Watts Maximum |
| Dimensions (H x W x D) | 20 cm x 28 cm x 36 cm |
| Weight | 6.8 kg (15 lbs) |
| Packaging Details | Vapro 5600 with Accessories |
Key Features
- Advanced vapor pressure osmometry technology
- Requires only 10 µL minimum sample volume
- Automatic calibration and self-diagnostic system
- Self-cleaning thermocouple for reliable operation
- Computer interface and printout capabilities
- Suitable for fluid, viscous and tissue sample testing
Applications
The ELITech Vapro 5600 Vapor Pressure Osmometer is ideal for research laboratories, clinical laboratories, pharmaceutical testing, biotechnology applications, medical research, and industrial laboratory environments requiring accurate osmolality measurement.
Working Principle
Vapor pressure osmometry measures osmolality by detecting changes in vapor pressure caused by dissolved solutes in a solution. The method provides accurate measurement of sample concentration while requiring very small sample volumes, making it ideal for valuable or limited samples.
